Gateway pages

Each sensor gateway on AryaOS has its own Cockpit plugin for fine-tuning. Where the AryaOS Site page sets defaults for the whole device, a gateway page edits one service's own settings, controls that service. Shows its logs. All the gateway plugins share the same layout. Thus, once you know one you know them all.

Open any gateway page from Cockpit's left menu.

Which plugin manages which service

Cockpit plugin Service Config file Feeds
adsbcot adsbcot /etc/default/adsbcot ADS-B aircraft > CoT
aiscot aiscot /etc/default/aiscot AIS vessels > CoT
DroneCOT DJI / AntSDR dronecot-dji /etc/default/dronecot-dji DJI DroneID > CoT
DroneCOT DroneScout dronecot-dronescout /etc/default/dronecot-dronescout Open Drone ID > CoT
aprscot aprscot /etc/default/aprscot APRS (KISS TNC / APRS-IS) > CoT
sapientcot sapientcot /etc/default/sapientcot SAPIENT (BSI Flex 335) C-UAS / ISR > CoT
lincot lincot /etc/default/lincot This host's position/beacon > CoT
gps (gpsd) - On-board GNSS receiver
gpscot gpscot /etc/default/gpscot Network GPS to ATAK/WinTAK
aiscatcher ais-catcher /etc/default/ais-catcher Over-the-air AIS receiver

The AIS receiver (ais-catcher) demodulates RF AIS and hands messages to aiscot. aiscot is the CoT feeder. Likewise readsb/dump1090-fa/dump978-fa decode ADS-B/UAT and adsbcot feeds the CoT.

The common layout

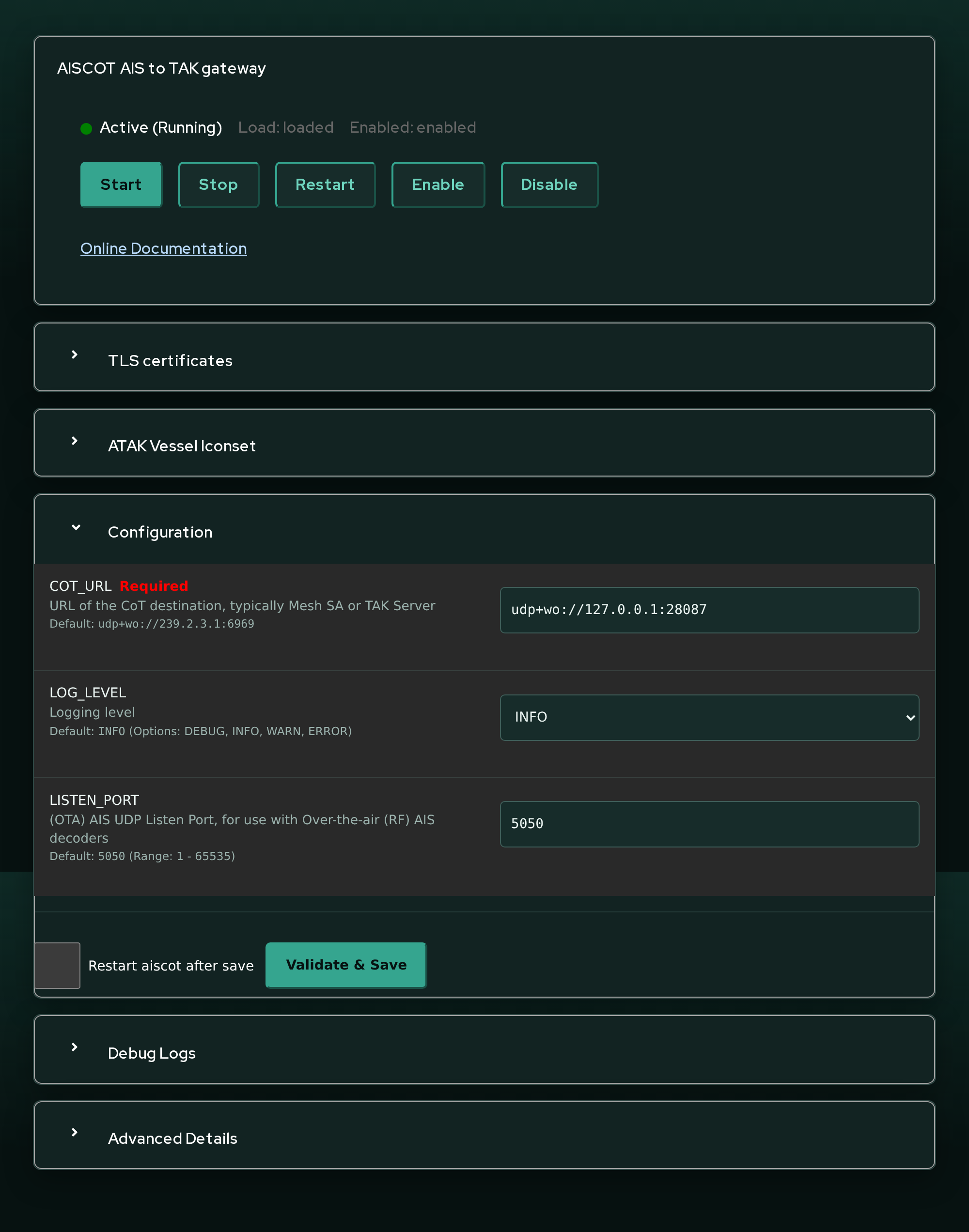

The aiscot gateway page in Cockpit - service controls, TLS certificates, iconset, and the configuration form over /etc/default/aiscot

Every gateway plugin (using aiscot as the representative example) shows the same cards, top to bottom:

Service card

At the top, a service management card shows the service's current state and gives you start / stop / restart / enable controls. Enabling a service makes it start at boot. The device role also manages enable/disable across the whole sensor set.

TLS card

A TLS upload card installs PEM client credentials for this service. For aiscot they go under /etc/aiscot/tls. The plugin fills in the matching PYTAK_TLS_CLIENT_CERT / PYTAK_TLS_CLIENT_KEY / PYTAK_TLS_CLIENT_CAFILE config keys.

Prefer site-wide TLS

In most deployments you install one set of certs once, on the AryaOS Site page. Every gateway inherits it. Use the per-gateway TLS card only when a single service needs a different client identity from the rest.

Configuration card

The Configuration card is a form generated from the gateway's environment-variable definitions. Each row shows the variable name, description, default, and an input for its type. Required fields are marked. Values are validated as you type. For example, COT_URL must use a supported scheme. Ports and enumerated values must also be valid. Invalid fields block the save.

Tick Restart service after save and press Validate & Save to write /etc/default/<svc> and (optionally) restart the service.

A representative slice of the aiscot form:

Variable Type Default Purpose
COT_URL url udp+wo://239.2.3.1:6969 CoT destination for this feeder
LOG_LEVEL enum INFO DEBUG / INFO / WARN / ERROR
LISTEN_PORT number 5050 UDP port for over-the-air AIS input
FEED_URL url (empty) Online AIS aggregator feed
IGNORE_ATON boolean false Drop Aids-to-Navigation
UNDERWAY_ONLY boolean false Drop anchored/moored vessels
COT_STALE number 3600 CoT stale timeout (seconds)

The other gateways expose their own variables, but the mechanics are identical.

Debug / logs card

A Debug Logs card shows live systemctl status output and gives you Show Logs, Follow Logs, and Stop Following buttons that stream the service's journal (journalctl -u <svc>).

The gateway page itself is the scroll container. Expanding Debug Logs or Advanced Details therefore remains scrollable inside Cockpit even when the card extends below the initial viewport. This behavior is covered by package and browser regressions across all seven gateway plugins listed above.

If one gateway suddenly appears unstyled while the others retain the AryaOS palette, first hard-refresh the page to discard cached HTML and CSS. Current packages also verify that every gateway HTML file explicitly loads both its bundled index.css and Cockpit's shared AryaOS branding stylesheet.

Advanced card

An Advanced Details card shows the raw contents of the service's /etc/default/<svc> file for reference.

Inheritance: site config, then per-service override

This is the key to how AryaOS gateways are configured:

  1. Every gateway's systemd unit reads /etc/aryaos/aryaos-config.txt (the site config) via EnvironmentFile= first.
  2. Then it reads its own /etc/default/<svc> file.

Because the per-service file is read second, anything you set on a gateway page overrides the site default for that one service. Anything you leave unset falls through to the site value.

How the default CoT route works

The site config sets COT_URL=udp+wo://127.0.0.1:28087 (the COTBridge hub). Each gateway inherits that value. Thus, every feeder sends CoT to COTBridge without a gateway-specific COT_URL. Setting COT_URL on the aiscot page changes only aiscot. The other gateways keep using the hub.

This is why the CoT routing invariant holds without per-service configuration. feeders > cotbridge > Mesh SA / TAK Server. Leave each feeder's COT_URL unset (inheriting the hub) and control the upstream in the COTBridge lane editor.

Setting COT_URL per gateway bypasses COTBridge

Overriding COT_URL on a gateway page routes that feeder around the hub. That is occasionally useful for debugging. But it means the feeder no longer benefits from COTBridge's fan-out to Mesh SA and TAK Servers. Prefer configuring destinations as COTBridge lanes.
